S16K-FSCVJCR11 (VCMT BORING BAR FOR VCMT11)

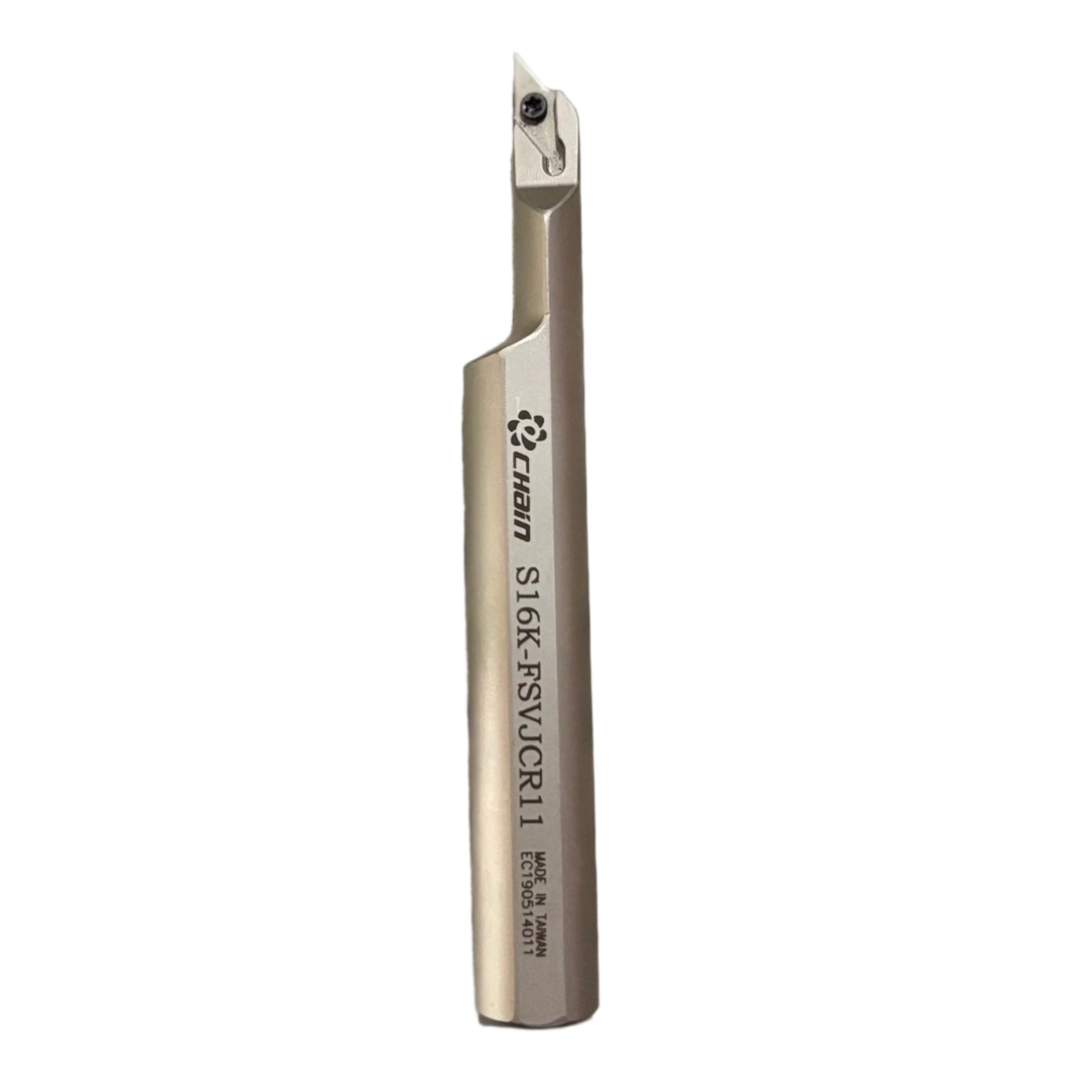

This image shows a boring bar manufactured by Echain, specifically model S16K-FSVJCR11. It is designed for precision machining operations and uses a VCMT 11 insert, which is a rhombic-shaped cutting insert.

Key Features:

1. Body:

   • Material: High-strength steel or alloy, providing rigidity and vibration resistance.
   • Finish: Durable coating to resist wear and corrosion.
   • Size: The "S16" in the model number indicates the shank diameter (16mm), making it suitable for medium to small internal turning operations.

2. Insert Type:

   • Compatible with VCMT 11 inserts, which are rhombic cutting tools ideal for fine turning and boring.
   • The insert provides high precision and superior surface finish, especially for hard-to-reach internal surfaces.

3. Usage:

   • Boring Bar: Designed to perform internal turning, boring, and profiling in lathe operations.
   • Versatile for various materials like steel, stainless steel, and non-ferrous metals.

4. Mounting:

   • Features a secure clamping mechanism to hold the insert firmly, ensuring cutting stability.

This tool is commonly used in the machining industry for applications requiring precision in internal features, such as holes, slots, and profiles.
